8-Post Yacht Lifts Engineered for Large Vessels

Industrial-duty lift systems custom-engineered around the vessel, structure, and site.

Neptune 8-Post Yacht Lifts are designed for large-vessel applications requiring strength, stability, and precise vessel support. Available in capacities from 30,000 lbs. to 300,000 lbs., these systems are engineered around the vessel, piling layout, waterfront conditions, drive requirements, and intended use.

Request a Yacht Lift Consultation
Download Yacht Lift Specifications

Industrial-Duty Yacht Lift Systems

Built for large-vessel support and demanding applications.

Neptune 8-Post Yacht Lifts are not standard boat lifts made larger. They are custom-engineered lifting systems designed for the structural demands of larger vessels and more complex waterfront applications.

Each system is evaluated around the full project, including loaded vessel weight, beam, hull design, center of gravity, propulsion, piling layout, water depth, electrical requirements, access needs, and site conditions.

A Neptune 8-Post Yacht Lift may be considered when the application requires:

  • Large-vessel lifting capacity

  • Greater structural support than a traditional 4-Post Lift

  • Additional piling support for load distribution

  • Custom bunking and vessel support

  • Heavy-duty drive and cable systems

  • Site-specific engineering review

  • Long-term performance in demanding marine environments

Built for Large Modern Vessels

Modern vessels continue to become larger, heavier, and more customized. Added fuel capacity, propulsion, towers, electronics, generators, stabilizers, and other installed equipment can significantly affect lift selection.

Neptune evaluates yacht lift applications based on the vessel’s real operating weight and support requirements — not dry weight or vessel type alone. The lift must be configured to properly support the vessel, distribute load, and perform reliably in the specific waterfront environment.

Key selection factors may include:

  • Loaded vessel weight

  • Vessel beam and length

  • Hull design and lifting points

  • Center of gravity

  • Propulsion and equipment weight

  • Bunking and cradle requirements

  • Available piling layout

  • Drive system selection

  • Site and access conditions

When an 8-Post Yacht Lift Is the Right Choice

An 8-Post Yacht Lift is typically considered when the vessel, site, and support requirements call for more structure than a smaller lift configuration can provide.

The right choice depends on vessel requirements, site conditions, piling layout, lift design, customer preference, and overall application. In some cases, piling quantity or piling cost may influence the final lift selection. In others, the decision may be driven by vessel size, support needs, access, water depth, or long-term performance expectations.

Neptune reviews each yacht lift application individually to help determine the appropriate lift type, capacity, structure, drive system, and support configuration.

Custom Engineered for the Vessel and Waterfront

Every yacht lift starts with the application.

No two yacht lift projects are exactly the same. Neptune custom-engineers 8-Post Yacht Lifts around the vessel, waterfront structure, site conditions, and project requirements.

Design considerations may include:

  • Vessel weight and beam

  • Hull design and bunking requirements

  • Piling size, placement, and quantity

  • Structural load distribution

  • Vertical travel requirements

  • Electrical and drive requirements

  • Access and service considerations

  • Environmental exposure

  • Dealer and contractor installation requirements

This application-driven approach allows Neptune to configure each yacht lift around the actual demands of the project.

Built for Demanding Marine Environments

Neptune 8-Post Yacht Lifts are built with aluminum and stainless-steel construction for long-term performance in harsh waterfront conditions. These systems are designed for marine environments worldwide, including coastal, inland, residential, commercial, marina, and yacht applications.

Available features and options may include:

  • Aluminum and stainless-steel construction

  • Welded construction

  • Direct Drive yacht lift configurations

  • G6 SuperFast options for selected applications

  • G3 High Speed option on select 30,000 lb. yacht lift applications

  • Industrial-duty stainless-steel motors

  • Massive solid aluminum grooved winders

  • Stainless-steel cables

  • Solid aluminum bearing blocks with Delrin bearings

  • Heavy-duty adjustable guide poles

  • Self-adjusting cable keepers

  • Wireless remote control and limit switch options

  • Optional SEArmor package for added component protection

Final features and options vary by capacity, drive selection, and project requirements.

High-Speed Direct Drive Options

For yacht lift applications, drive selection is about more than speed. The drive system must be matched to lift capacity, vessel requirements, electrical service, piling layout, and the demands of the project.

Direct Drive provides dependable lifting performance for large-vessel applications and is designed without belts or chains. G3 High Speed offers faster lifting for owners who want improved convenience and shorter wait times. G6 SuperFast is built for maximum performance when speed matters most.

Drive options include:

Direct Drive

G3 High-Speed Drive

G6 SuperFast Drive

Dependable lifting performance for everyday use.

Faster lift speeds for improved convenience.

Maximum performance for demanding lifting applications.

Direct drive systems eliminate belts and chains, delivering smoother operation and reduced maintenance over time.

Technical Specifications

Direct Drive 8-Post Specifications

Size Top Carrier Dimensions Lifter Beam Dimensions Horse Power Volt and Amperage Cable Size Winders/Drive Shaft Vertical Travel Bunks Pile Size
30,000 lb. (w/remote) 6" Channel 12" x 16' I-Beam (4) 1 HP Stainless Steel Motors 240V/30A 3/8" Stainless Steel Mil-Spec Hardened Grooved Winders 12' 3" x 12" x 20' (8) 10" Driven Pilings
40,000 lb. (w/remote) Twin I-Beam Double I-Beam 16' – 20' Neptune® Patented 1HP Stainless Steel Magnetic Brake Motors 240V/30A 3/8" Stainless Steel Mil-Spec Hardened Solid Grooved Winders 12' 5" x 12" x 20' (8) 10" – 12" Driven Pilings
50,000 lb. (w/remote) Twin I-Beam Double I-Beam 16' – 20' Neptune® Patented 2HP Stainless Steel Magnetic Brake Motors 240V/60A 7/16" Stainless Steel Mil-Spec Hardened Solid Grooved Winders 12' 5" x 12" x 20' (8) 10" – 12" Driven Pilings
60,000 lb. (w/remote) Twin I-Beam Double I-Beam 12" 18' – 20' Neptune® Patented 2HP Stainless Steel Magnetic Brake Motors 240V/60A 7/16" Stainless Steel Mil-Spec Hardened Solid Grooved Winders 12' 5" x 12" x 20' (8) 12" Driven Pilings
70,000 lb. (w/remote) Twin I-Beam Triple I-Beam 12" Double Lifters 18' – 21' Neptune® Patented 2HP Stainless Steel Magnetic Brake Motors 240V/60A 7/16" Stainless Steel Mil-Spec Hardened Solid Grooved Winders 12' 5" x 12" x 20' (8) 12" Driven Pilings
80,000 lb (w/remote) Twin I-Beam Triple I-Beam 12" Double Lifters 20' – 21' Neptune® Patented 2HP Stainless Steel Magnetic Brake Motors 240V/60A 7/16" Stainless Steel Mil-Spec Hardened Solid Grooved Winders 12' 8" x 12" x 20' (8) 12" Concrete Driven Pilings
120,000 lb (w/remote) Twin I-Beam Double I-Beam 18" Quad Lifters 20' – 22' Neptune® Patented 2HP Stainless Steel Magnetic Brake Motors 240V/80A 7/16" Stainless Steel Mil-Spec Hardened Solid Grooved Winders 12' 8" x 12" x 20' (8) 12" Concrete Driven Pilings
180,000 lb (w/remote) Twin I-Beam Double I-Beam 18" Quad Lifters 20' – 22' Neptune® Patented 2HP Stainless Steel Magnetic Brake Motors 240V/80A 7/16" Stainless Steel Mil-Spec Hardened Solid Grooved Winders 12' 8" x 12" x 20' (8) 12" Concrete Driven Pilings

Specifications may vary based on installation conditions and optional upgrades.

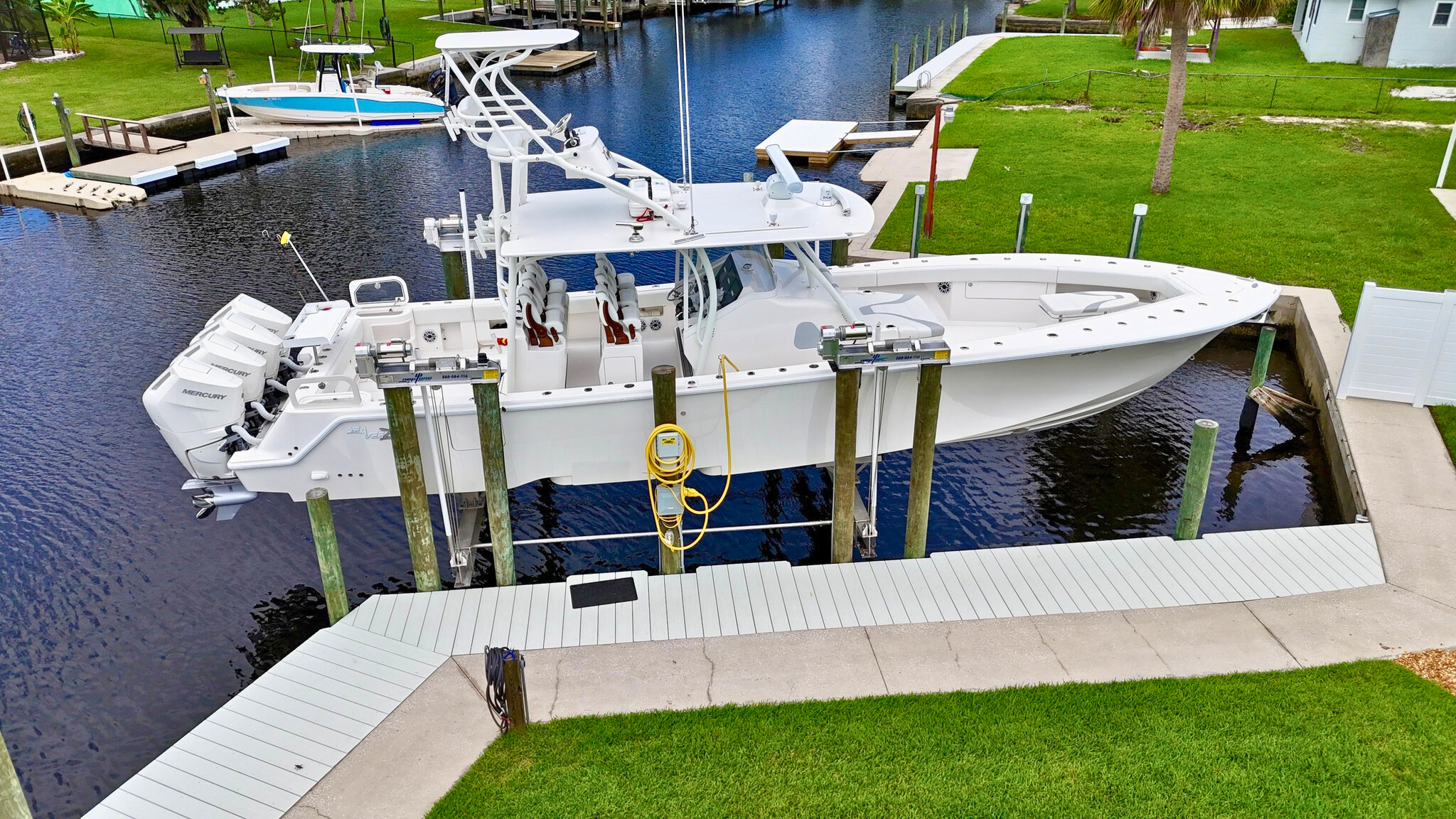

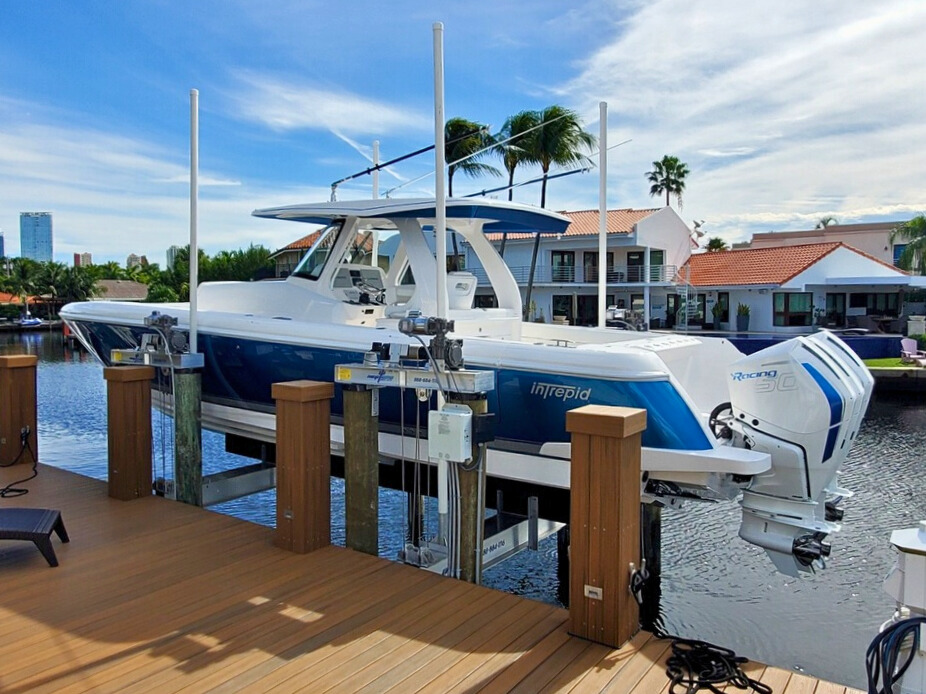

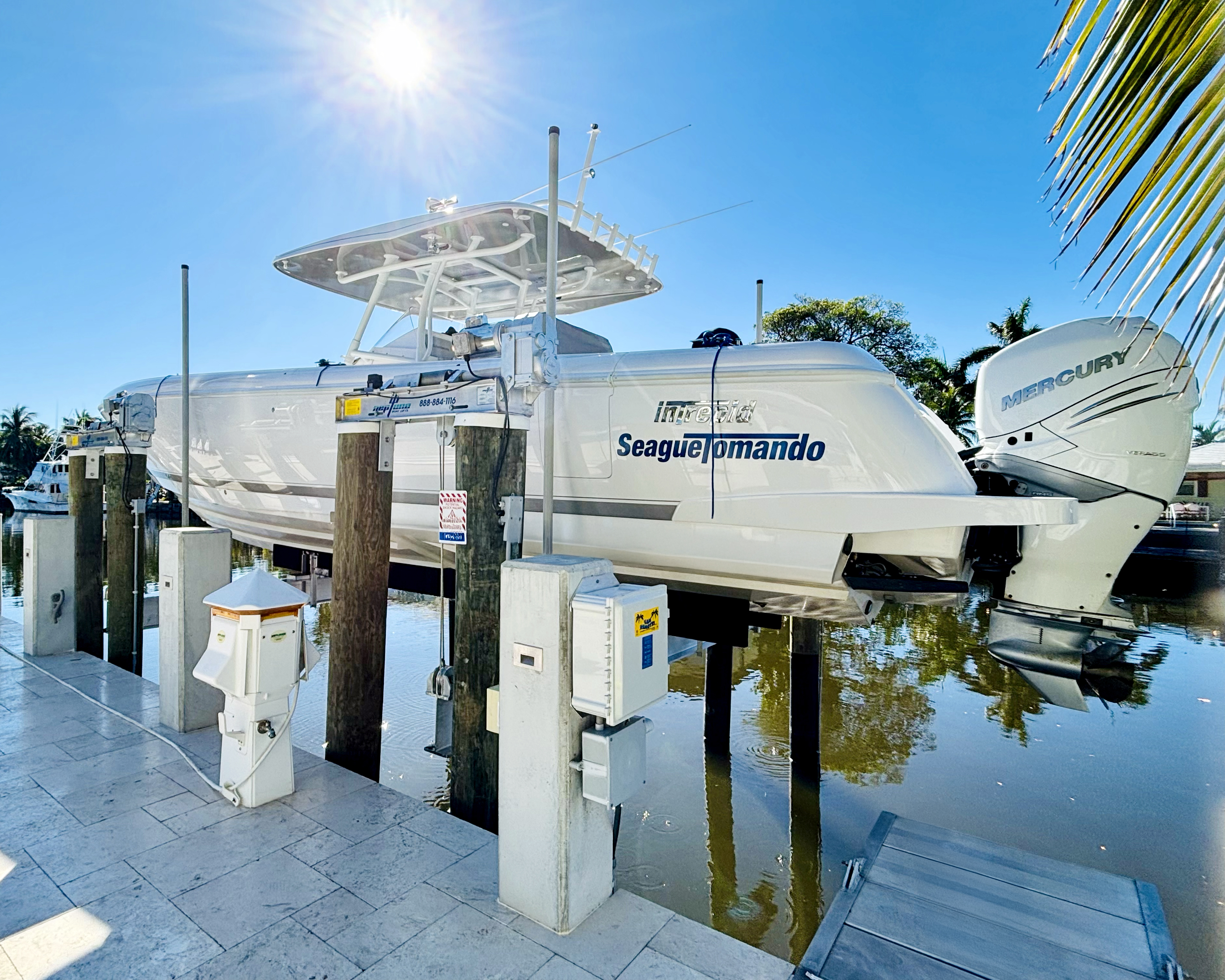

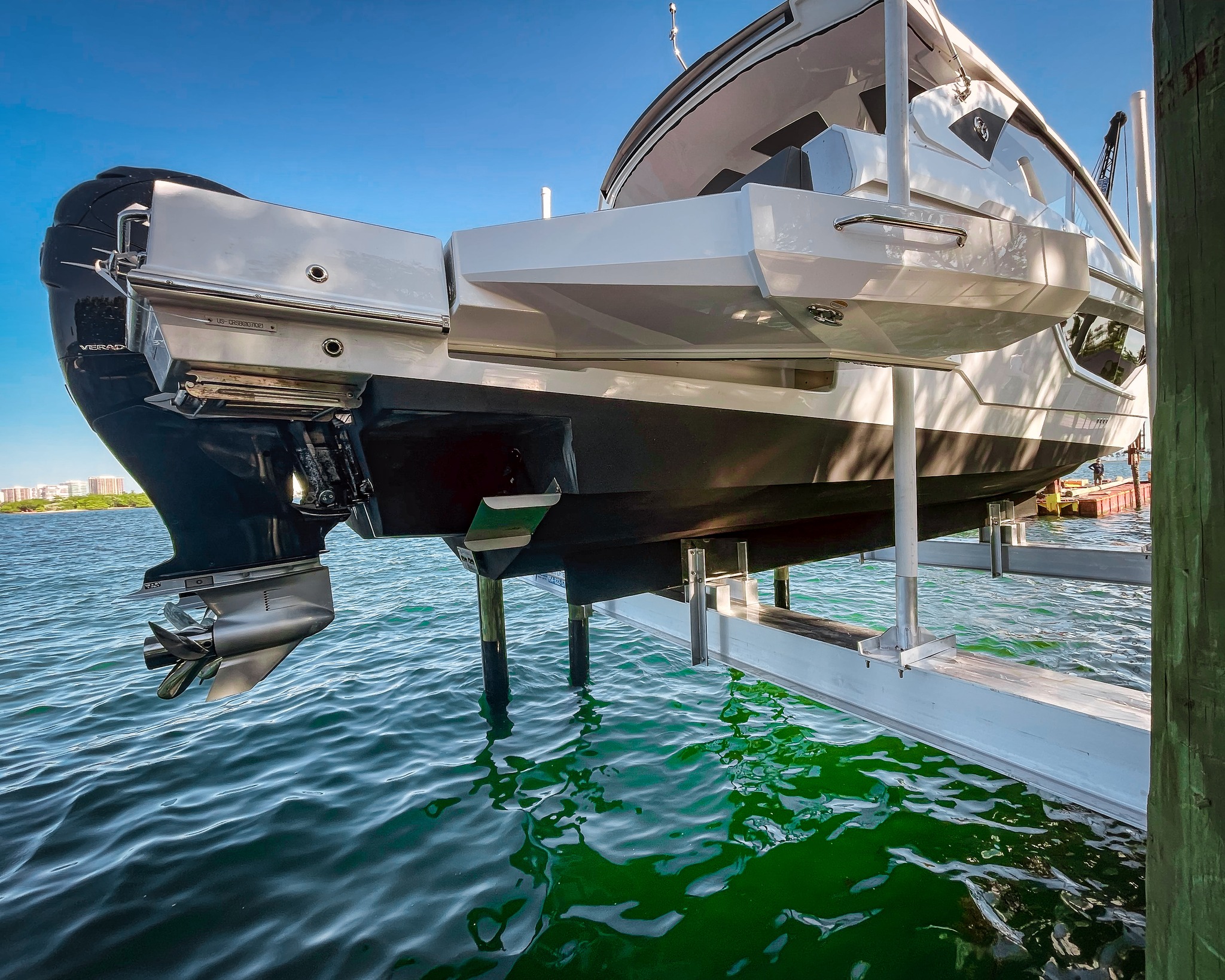

Neptune 8-Post Yacht Lift Installations

Product Resources

Download technical information and planning resources for Neptune lift systems.

Available downloads include:

8-Post Lift Specification Sheet  - Direct Drive

8-Post Lift Specification Sheet  - G6

Neptune Lift Planning Guide

Installation Overview Guide

Warranty Information

Learn More:

For large vessels, bunking and cradle design are just as important as lifting capacity. The lift must support the boat at the correct points, align with the hull shape, and maintain proper center-of-gravity positioning each time the vessel is raised.

Neptune 8-Post Yacht Lifts can be configured with heavy-duty bunks and structural components based on the vessel’s hull and weight distribution. Larger configurations may use wide bunks, double lifters, quad lifters, or custom layouts depending on the boat and lift capacity. The goal is to create a lift system that supports the vessel securely, operates reliably, and fits the waterfront environment.

An 8-post yacht lift is a major marine construction project, so installation planning is essential. Pile size, pile placement, dock access, electrical service, water depth, tidal range, and vessel clearance all affect the final design.

Neptune sells its products through licensed marine contractors who permit, sell, install, and service Neptune lifts. This dealer-based approach helps ensure that each installation is reviewed by qualified professionals who understand both the lift system and the local marine construction requirements.

Before installation, a Neptune dealer can help review the vessel, confirm the proper lift size, evaluate the dock or piling layout, and coordinate the information needed for production and installation.

Large-vessel lifts carry significant weight, so routine inspection and safe operation are essential. Neptune owner materials emphasize that boat lifts should be inspected before use, including cables, sheaves, pulleys, winders, and structural components. If a lift has been idle for more than 90 days, a complete inspection and lubrication of moving parts is recommended before operation.

Owners should never exceed the rated capacity of the lift, never operate the lift with people in or under the boat, and never leave the lift running unattended. The boat should also be positioned properly on the lift each time, with careful attention to center of gravity and drainage.

Regular maintenance, rinsing, cable inspection, lubrication, anode care, and proper operation help protect the lift and preserve reliable long-term performance.

Neptune Boat Lifts provides limited warranty coverage for qualifying products and components. Current warranty materials state that the structural integrity of aluminum and stainless steel members is warranted for 10 years, gearboxes for 5 years, motors for 2 years, and other components for 1 year. Coverage applies to the original owner and begins upon delivery.

Routine maintenance and periodic service are the owner’s responsibility, and warranty work must be authorized by Neptune Boat Lifts, LLC and performed by an authorized Neptune technician to maintain factory warranty coverage. Full warranty documentation should be reviewed for complete terms, exclusions, and limitations.

Depending on your dock configuration, you may also want to explore other Neptune lift systems.

Elevator Yacht Lifts

Each lift system is engineered for different vessel sizes and waterfront environments.

8-post yacht lifts are typically recommended when vessels exceed the safe working range of traditional four-post lifts.

These systems are commonly used for:

  • Sport fishing yachts

  • Large center console boats with triple or quad outboards

  • Offshore cruising boats

  • Luxury motor yachts

  • Heavily equipped fishing vessels

Many large offshore boats today weigh significantly more due to fuel capacity, equipment, and engine configurations. An 8-post lift provides the structural capacity required for these modern vessels.

Frequently Asked Questions

An 8-post boat lift is a heavy-duty lift system that distributes vessel weight across eight pilings instead of four. This added support helps larger boats and yachts maintain greater stability while being raised, lowered, and stored above the water.

An 8-post lift is usually recommended when a vessel’s loaded weight, beam, or overall size exceeds the ideal range of a traditional 4-post lift. Large center consoles, sportfish yachts, cruising boats, and heavily equipped offshore vessels often require the additional support of an 8-post configuration.

Neptune 8-Post Yacht Lifts are available in standard and custom configurations, with capacities up to 300,000 lbs. Final capacity depends on vessel requirements, engineering, piling layout, and site conditions.

Yes. Neptune 8-Post Yacht Lifts are built for coastal marine environments using aluminum and stainless steel construction, stainless steel cables, marine-duty stainless steel motors, and available SEArmor corrosion-resistant components.

Yes. Many large modern center consoles, including boats with triple or quad outboards, are strong candidates for 8-post lift systems because of their beam, engine weight, fuel capacity, and loaded operating weight.

Depending on capacity and configuration, Neptune 8-Post Yacht Lifts may be available with Direct Drive, G3 High Speed, and G6 SuperFast drive systems.

Yes. Large-vessel lifts should be engineered around the specific boat and installation site. Vessel weight, beam, hull design, water depth, piling layout, dock configuration, and electrical requirements all affect the final lift design.

A typical 8-Post Yacht Lift uses eight pilings, but piling requirements depend on lift capacity, vessel size, load distribution, site conditions, and engineering review. On larger applications, piling size, quantity, and placement become major design considerations.
