Elevator Boat Lifts Engineered Around Your Vessel and Waterfront

Neptune Elevator Boat Lifts are custom-configured lift systems designed around the vessel, structure, site conditions, and installation requirements.

Mounted to a seawall or piling-supported structure tied back to land, elevator lifts are often selected for waterfronts where side access, dock layout, appearance, or available structure make an open-sided lift configuration the preferred choice.

Request a Custom Lift Consultation Download Elevator Lift Specifications

Built for Waterfront Properties Where Space Matters

A custom lift approach for waterfront properties.

Engineered Capacity: Up to 20,000+ lbs

Designed For: Seawalls, canal homes, and tight waterfront slips

Neptune Elevator Boat Lifts are not selected by boat type or location alone. Each system should be evaluated based on the vessel, property, structure, water depth, beam, capacity requirements, environmental exposure, and installation conditions.

Some customers choose elevator lifts because of seawall layouts, canal settings, or limited dock space. Others choose them for open-sided vessel access, cleaner dock layouts, or personal preference. The right lift depends on the application.

A Neptune Elevator Lift may be considered when the project requires:

  • A seawall, dock, or piling-supported mounting approach

  • Open-sided access to the vessel

  • A lift layout that reduces surrounding piling structure

  • A configuration based on beam, capacity, and site requirements

  • A custom installation reviewed by Neptune and an authorized marine contractor

Every elevator lift application should be reviewed based on the actual vessel and waterfront conditions.

How a Neptune Elevator Boat Lifts Works

Neptune angled aluminum elevator lifts are cantilever-style lift systems mounted to a seawall or piling-supported structure tied back to land.

Standard systems use aluminum I-beam tracks driven into the seabed until refusal. Elevator arms travel along the tracks and are driven by powerheads mounted at the top of the system. The cradle, bunks, cables, guide components, and track alignment all work together to raise and lower the vessel.

Because elevator lifts depend heavily on track alignment and structural support, proper installation is critical. These systems should be installed by authorized Neptune dealers and qualified marine contractors familiar with Neptune elevator lift requirements.

Key application factors include:

  • Vessel loaded weight

  • Vessel beam

  • Hull design and center of gravity

  • Mounting structure and tie-back requirements

  • Track alignment and installation conditions

  • Water depth and tidal range

  • Electrical and drive system requirements

  • Environmental exposure and electrolysis protection

Designed for Demanding Marine Environments

Built with materials and components selected for long-term performance.

Neptune Elevator Boat Lifts are built with aluminum and stainless-steel construction for demanding waterfront environments. Each system can be configured with Neptune components and options designed to support performance, durability, and serviceability over time.

Available features and options may include:

  • Aluminum and stainless-steel construction

  • Low-draft elevator design

  • Compact Direct Drive units

  • G3 High Speed and G6 SuperFast drive options

  • Stainless-steel cables

  • Solid Delrin rollers

  • Stainless-steel roller pins

  • Heavy-duty adjustable guide poles

  • Aluminum bunks or custom bunking options

  • SEArmor corrosion-resistant package

  • Complete disconnect switch

  • Sacrificial anodes

  • Auto stop and limit switch options where applicable

  • Underwater bracing for selected deepwater applications

Electrolysis protection is an important consideration for elevator lifts because portions of the system remain in the water. Proper installation, sacrificial anodes, disconnect switches, and maintenance all play a role in long-term performance.

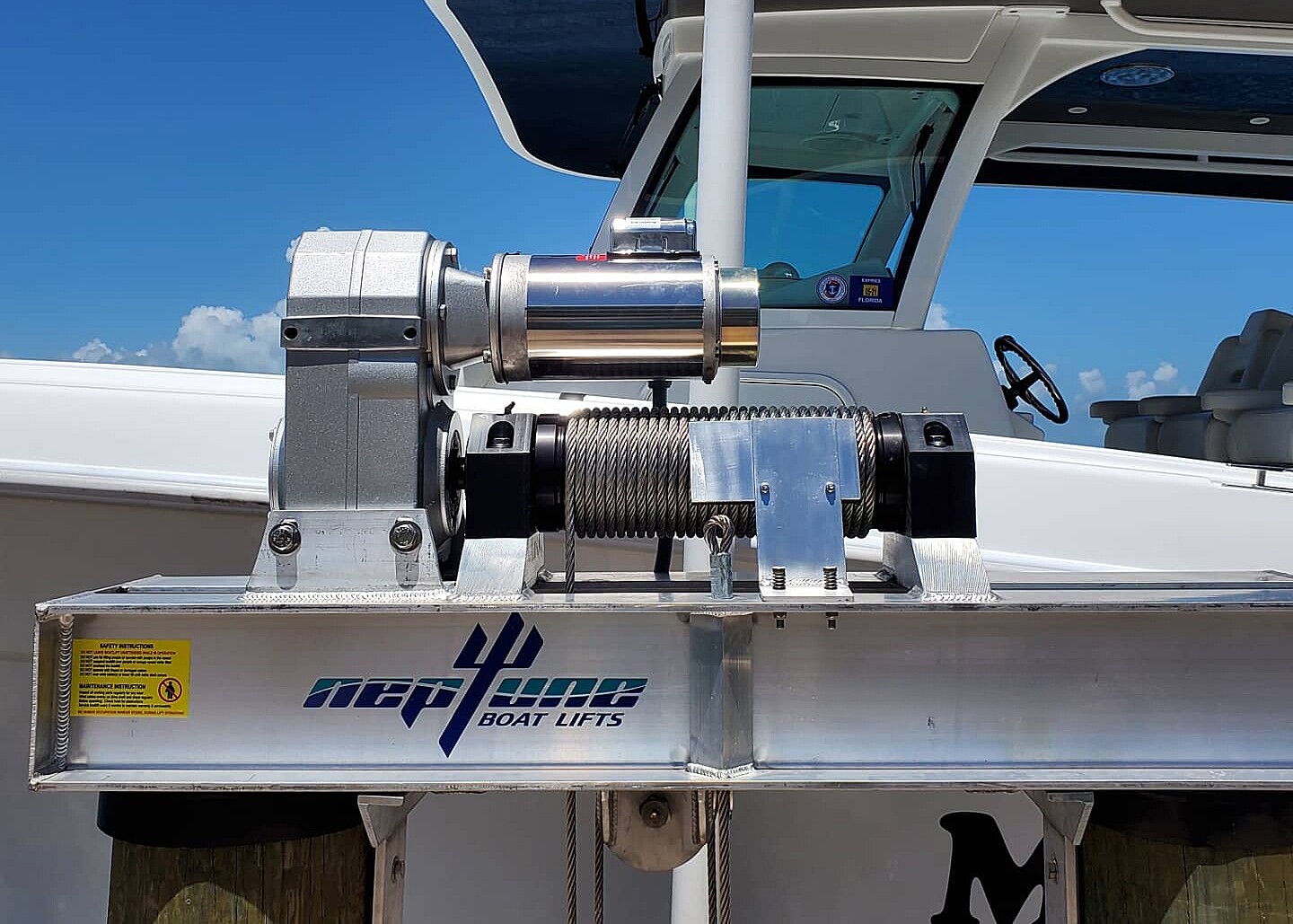

High-Speed Direct Drive Options

Neptune elevator lifts are available with multiple direct drive configurations designed to optimize lifting speed and performance.

Direct Drive is a dependable choice for everyday use, using a sealed, self-maintained drive unit with stainless steel motors. G3 High Speed Direct Drive provides faster lifting performance for owners who want added convenience. G6 SuperFast Direct Drive is designed for maximum speed and performance when lift time matters most.

Drive options include:

Direct Drive

G3 High-Speed Drive

G6 SuperFast Drive

Dependable lifting performance for everyday use.

Faster lift speeds for improved convenience.

Maximum performance for demanding lifting applications.

Direct drive systems eliminate belts and chains, delivering smoother operation and reduced maintenance over time.

Technical Specifications

Direct Drive Specifications

Lift Capacity Horse Power Volt & Amperage Cable Size & Length Vertical Travel Track Size Max Beam Cradle Dimensions Bunks Min Piling
5,000 lb. (2) 3/4 HP
Stainless Steel*		 120V / 30A
or
240V / 20A		 5/16" x 30'
Stainless Steel		 12' 6" x 4" x 25' I-Beam 8' 0" 7' Dual Forks 3" x 8" x 12'
Aluminum Bunks		 8" Min. Tied Back
7,000 lb. (2) 3/4 HP
Stainless Steel*		 120V / 30A
or
240V / 20A		 5/16" x 30'
Stainless Steel		 12' 8" x 5" x 25' I-Beam 8' 0" 7' Dual Forks 3" x 8" x 12'
Aluminum Bunks		 8" Min. Tied Back
10,000 lb. (2) 1 HP
Stainless Steel*		 120V / 30A
or
240V / 20A		 5/16" x 30'
Stainless Steel		 12' 8" x 5" x 25' I-Beam 9' 0" 8' Dual Forks 3" x 8" x 12'
Aluminum Bunks		 8" Min. Tied Back
12,000 lb. (2) 1 HP
Stainless Steel*		 120V / 30A
or
240V / 20A		 5/16" x 42'
Stainless Steel		 11' 10" x 6" x 25' I-Beam 10' 0" 8' Dual Forks 3" x 10" x 14'
Aluminum Bunks		 10" Min. Tied Back
14,000 lb. (2) 1 HP
Stainless Steel*		 120V / 30A
or
240V / 20A		 5/16" x 42'
Stainless Steel		 11' 10" x 6" x 25' I-Beam 10' 0" 8' Dual Forks 3" x 10" x 14'
Aluminum Bunks		 10" Min. Tied Back
15,000 lb. (2) 1 HP
Stainless Steel*		 120V / 30A
or
240V / 20A		 5/16" x 42'
Stainless Steel		 11' 10" x 6" x 25' I-Beam 10' 0" 8' Dual Forks 3" x 10" x 14'
Aluminum Bunks		 10" Min. Tied Back
17,000 lb. (2) 1 HP
Stainless Steel*		 240V / 20A 5/16" x 56'
Stainless Steel		 11' 12" x 7" x 25' I-Beam 12' 0" 10' Dual Forks 3" x 10" x 14'
Aluminum Bunks		 12" Min. Tied Back
20,000 lb. (2) 1 HP
Stainless Steel*		 240V / 20A 5/16" x 56'
Stainless Steel		 11' 12" x 7" x 25' I-Beam 12' 6" 10' Dual Forks 3" x 10" x 14'
Aluminum Bunks		 12" Min. Tied Back

*Stainless Steel Motors are standard on all Direct Drive and H2 High Speed Direct Drive lifts only. Specifications may vary based on installation conditions and optional upgrades.

Final lift selection should always be based on the vessel’s loaded weight, not just the dry weight. Fuel, water, engines, batteries, gear, accessories, and equipment all affect the real lifting weight. Neptune’s boat weight calculator accounts for dry weight, fuel, water, holding tanks, engines, options, and added gear weight when estimating the proper lift size.

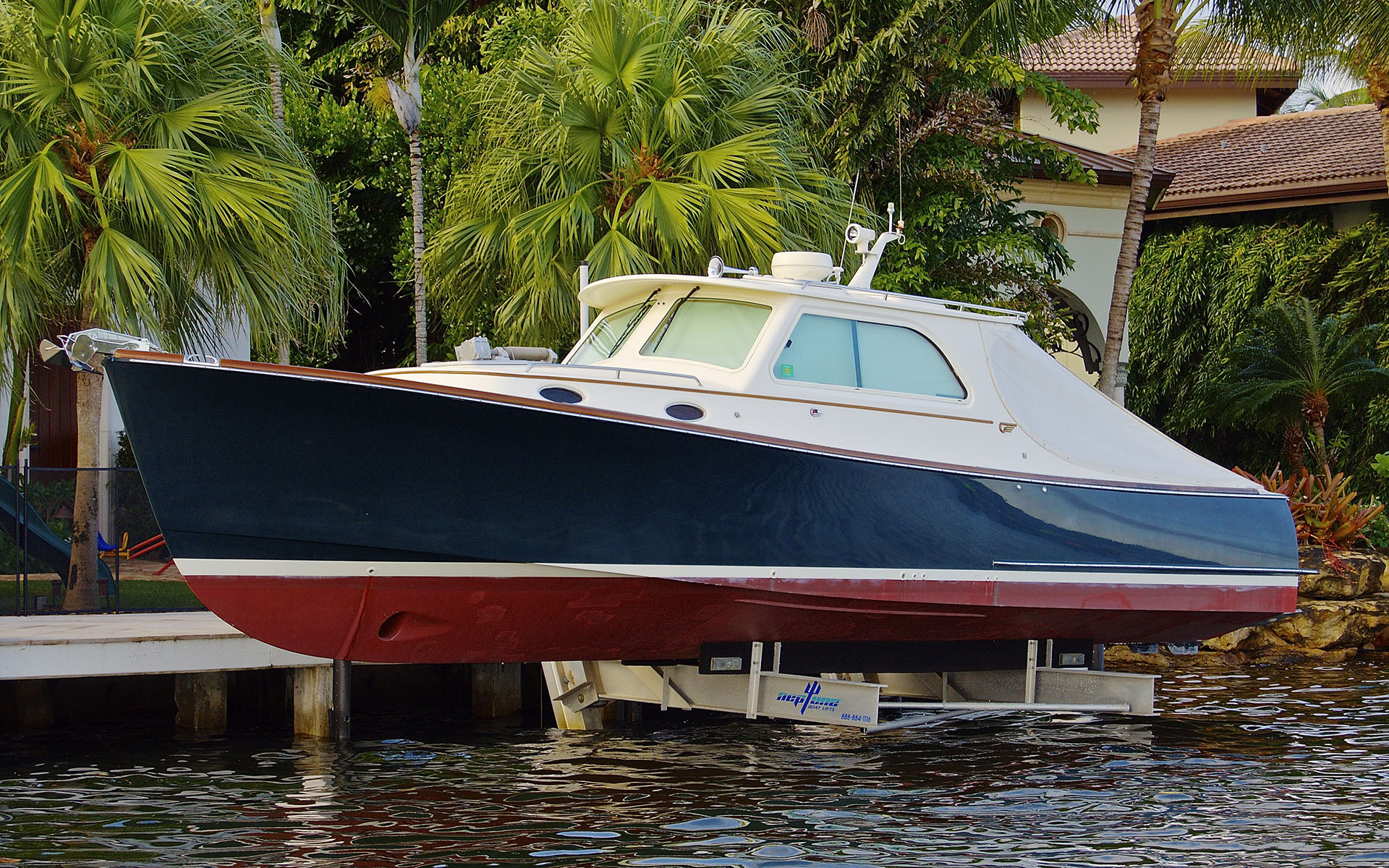

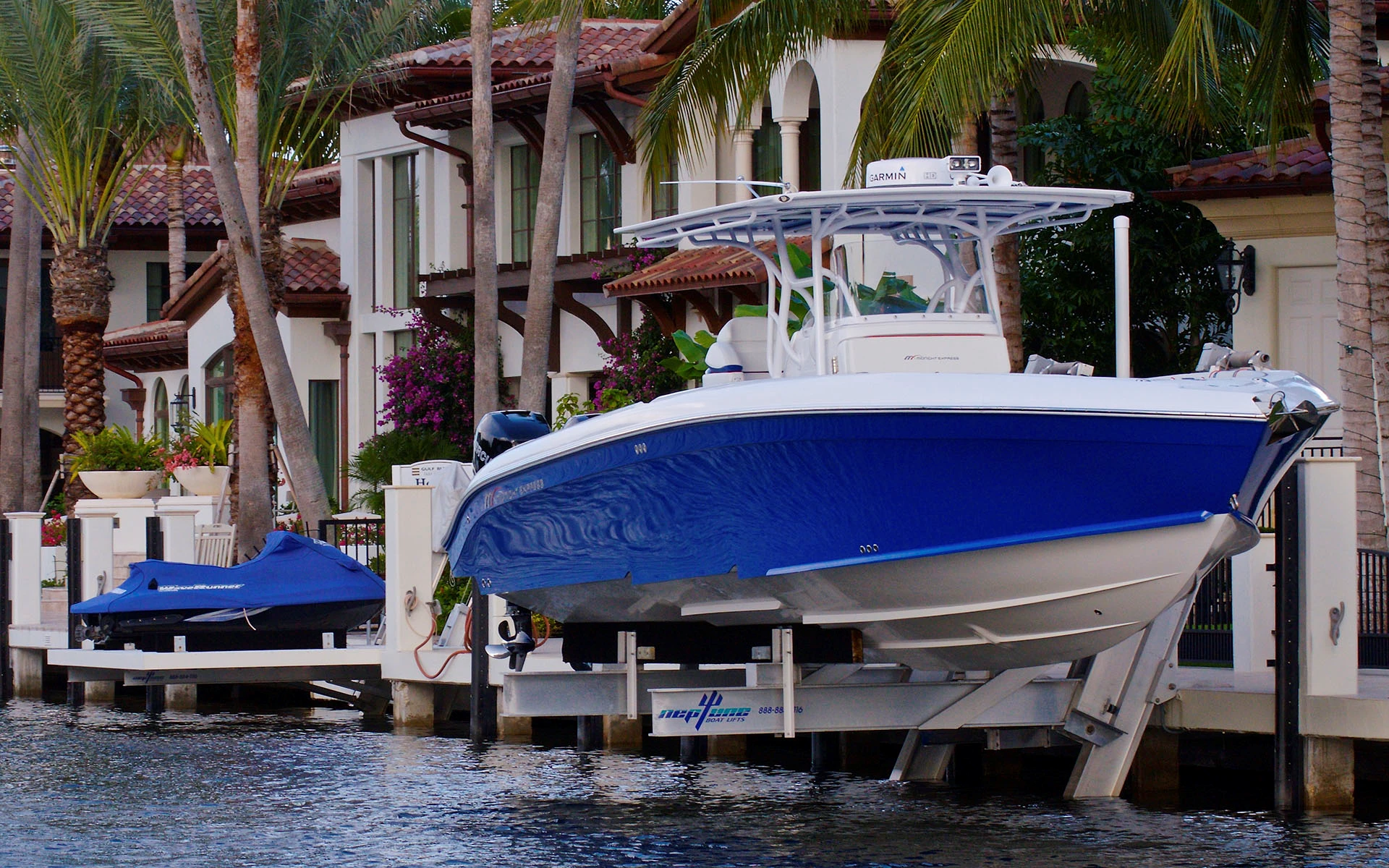

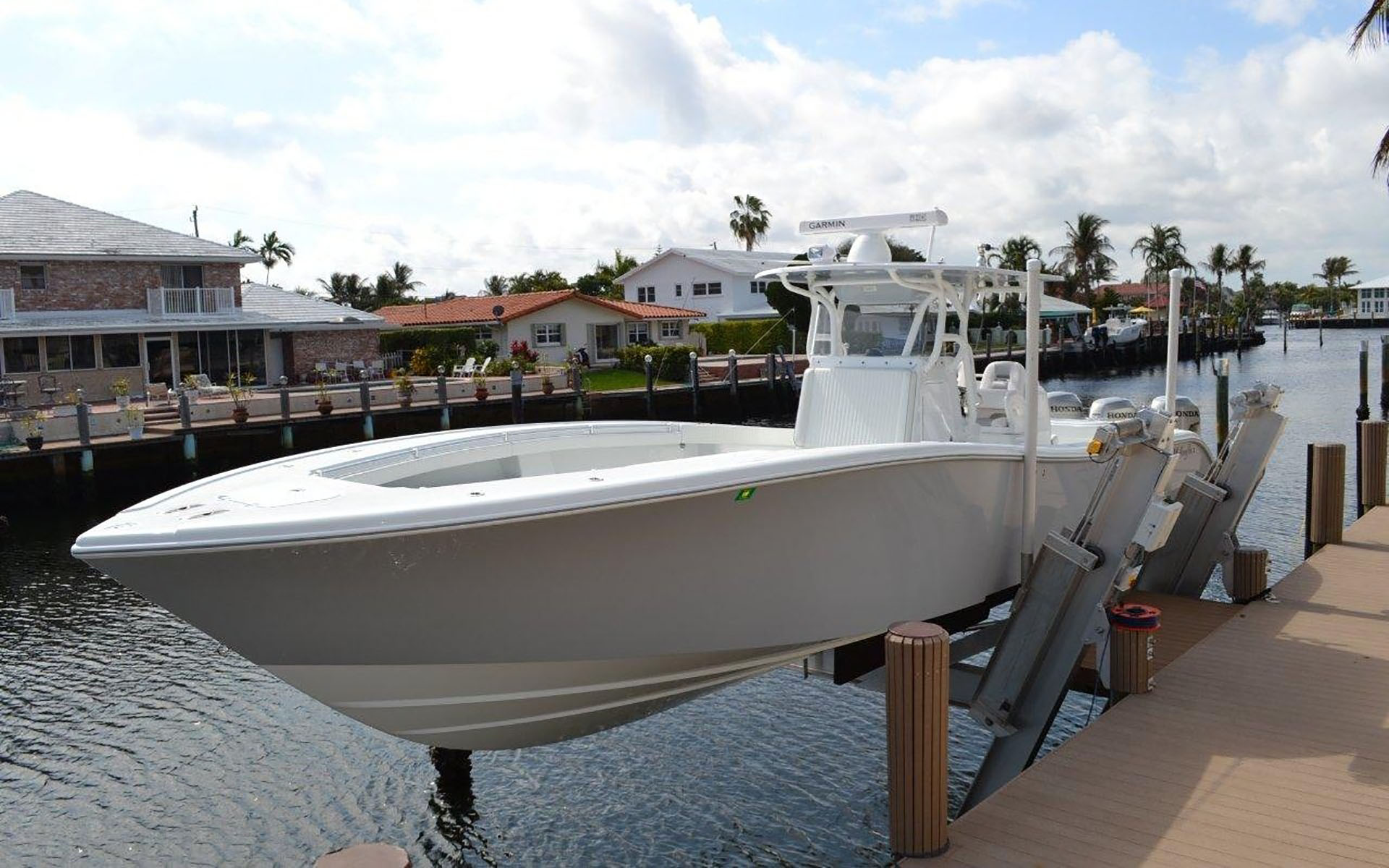

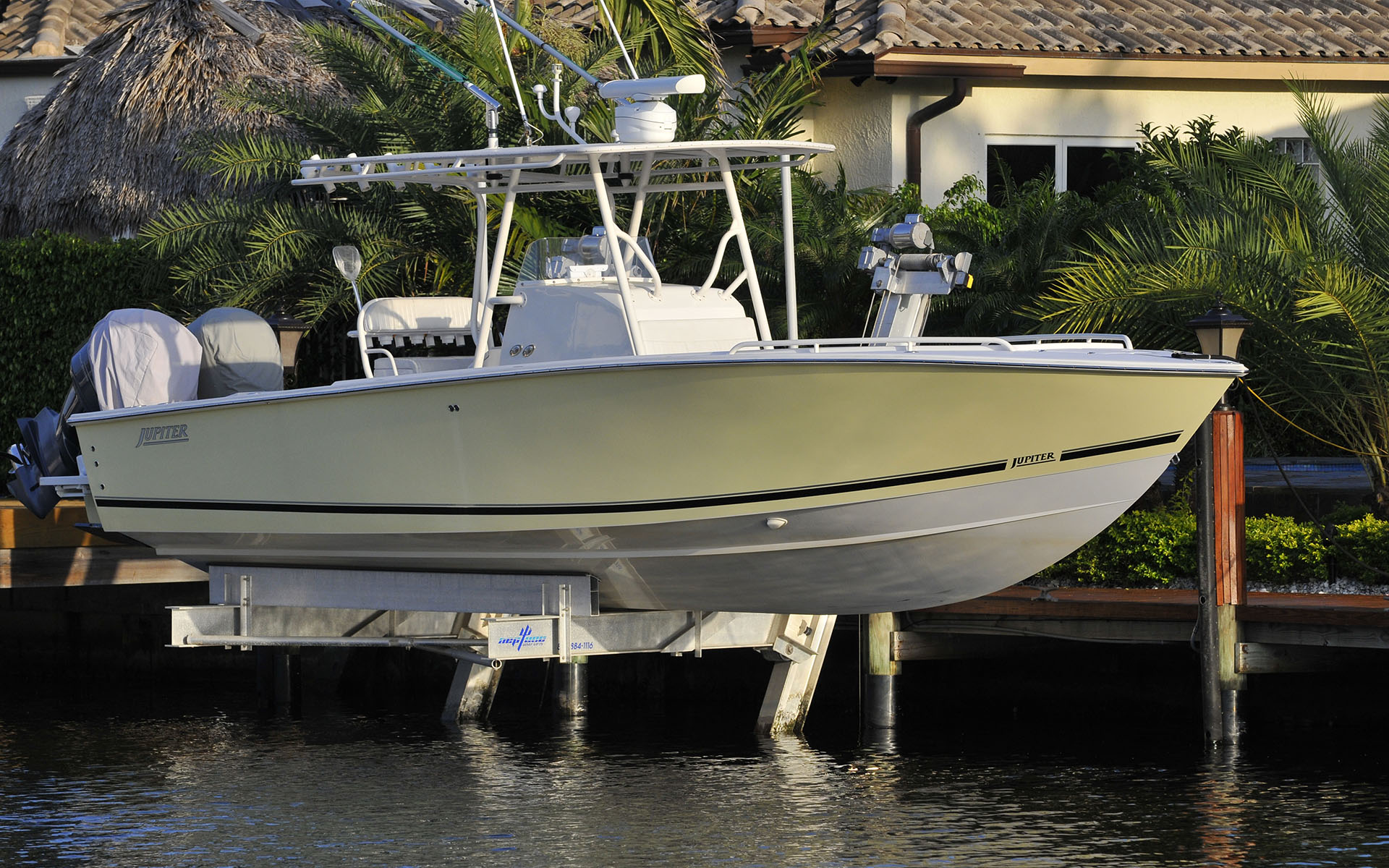

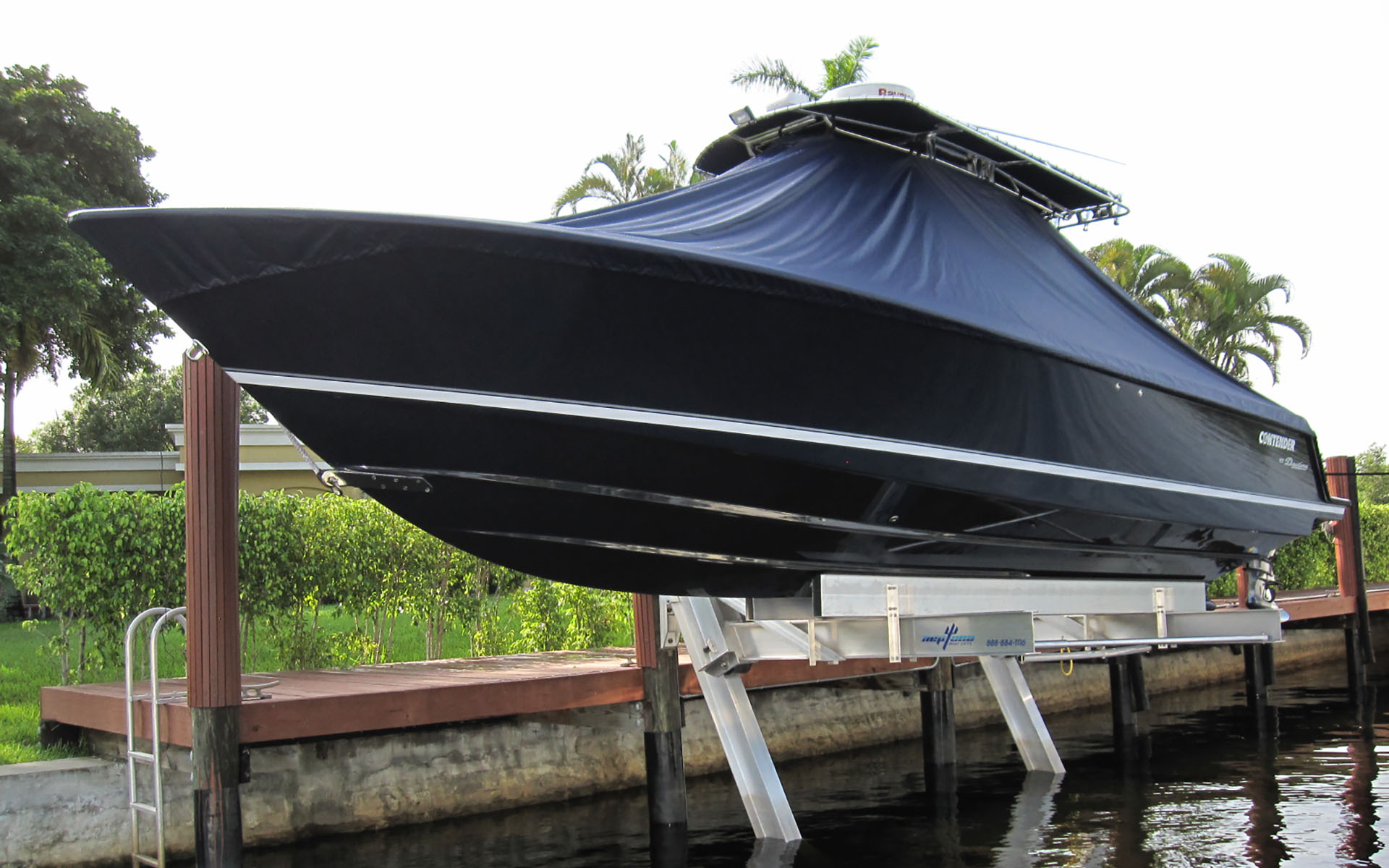

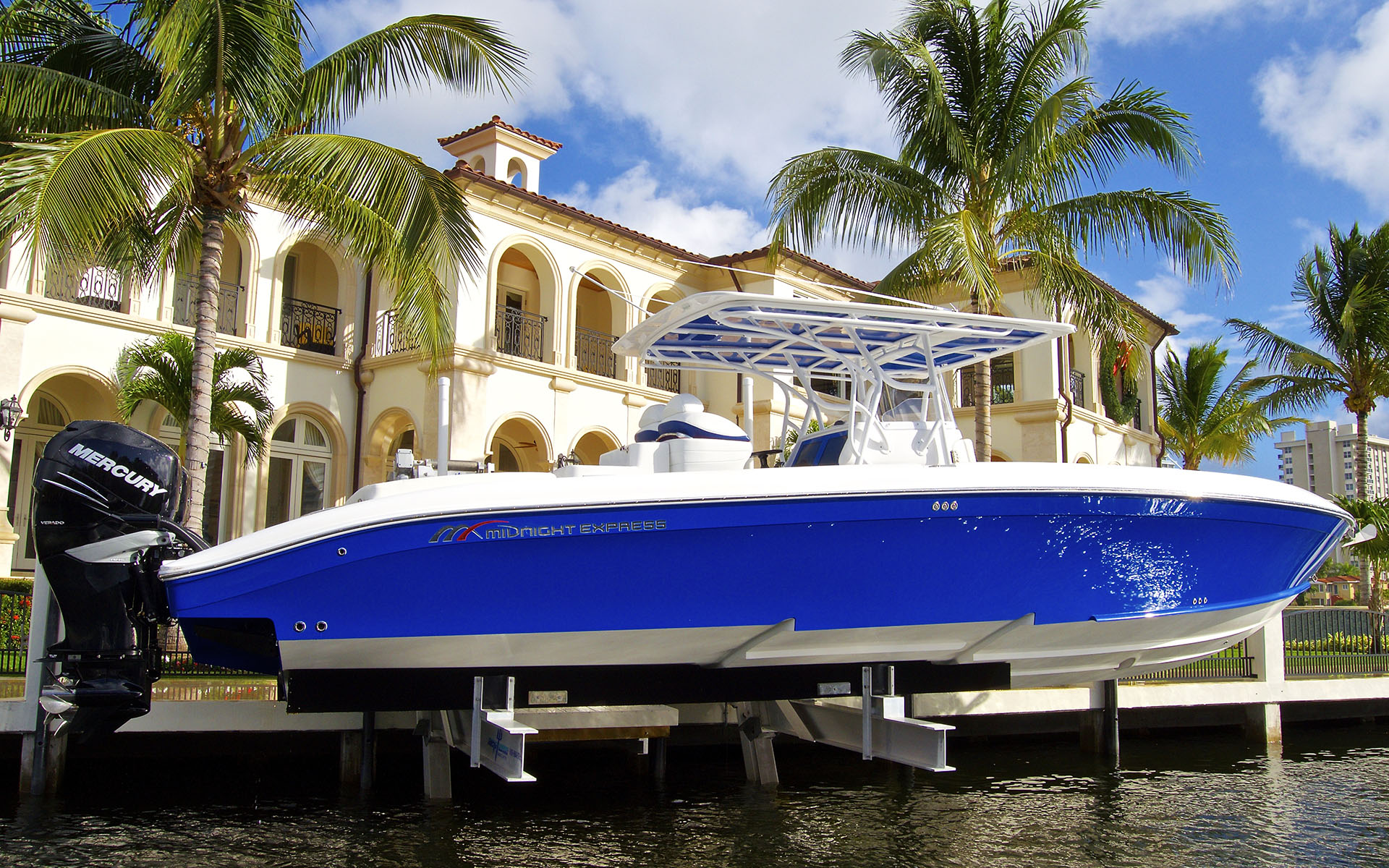

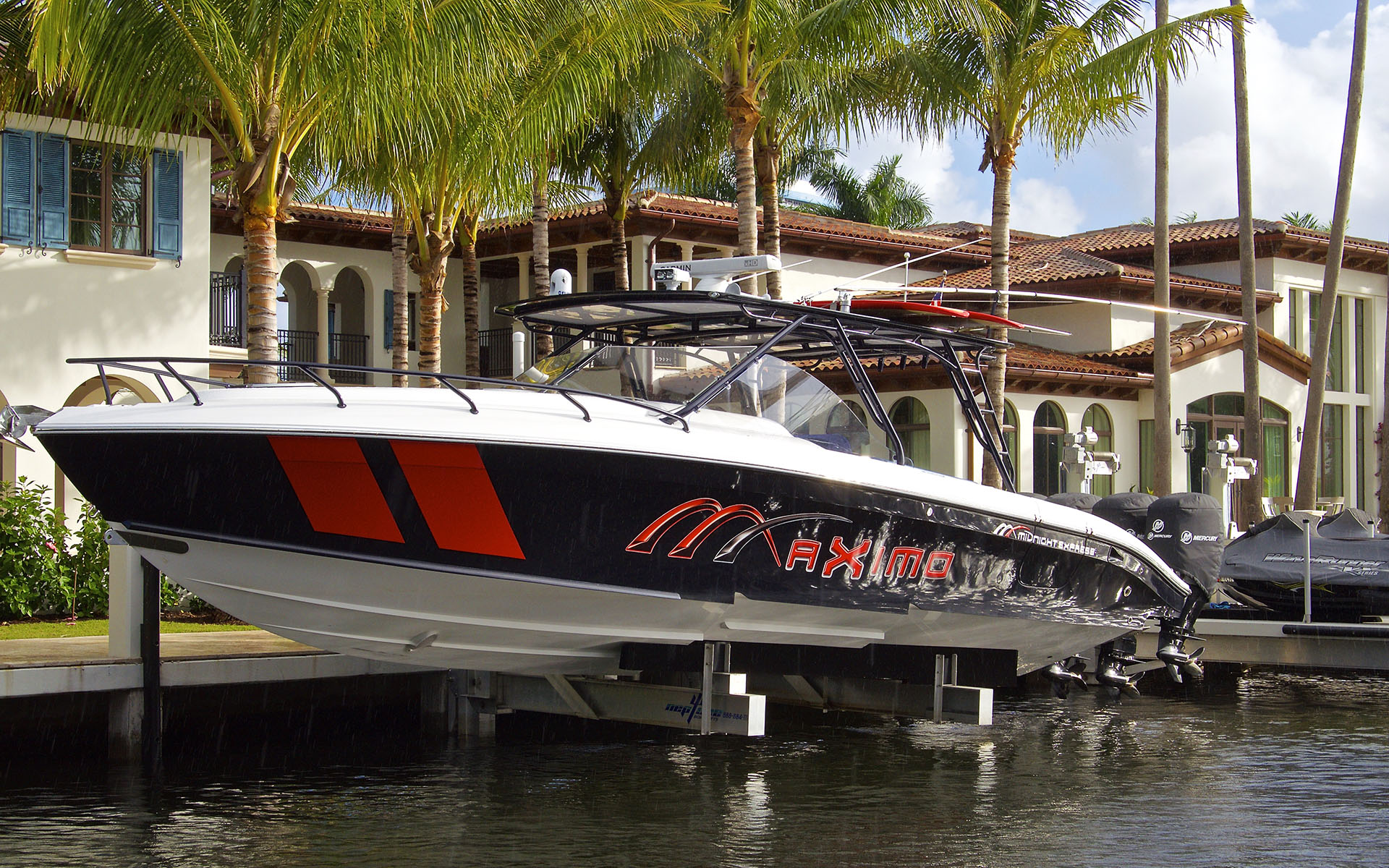

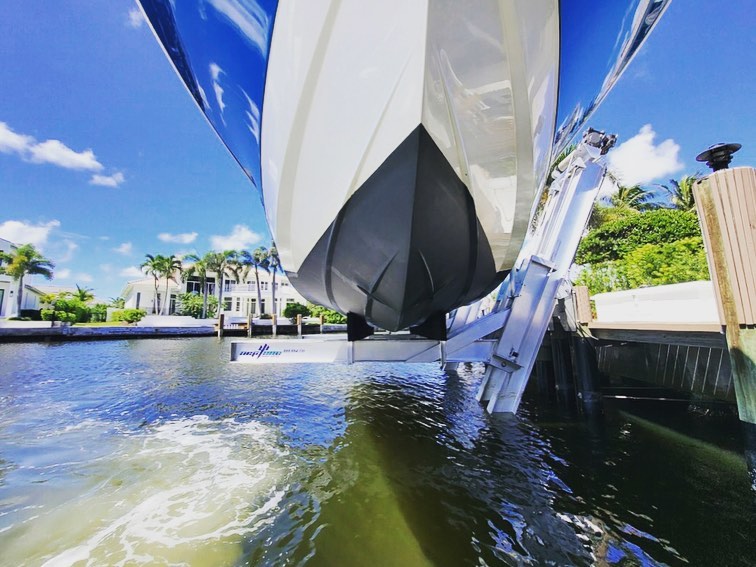

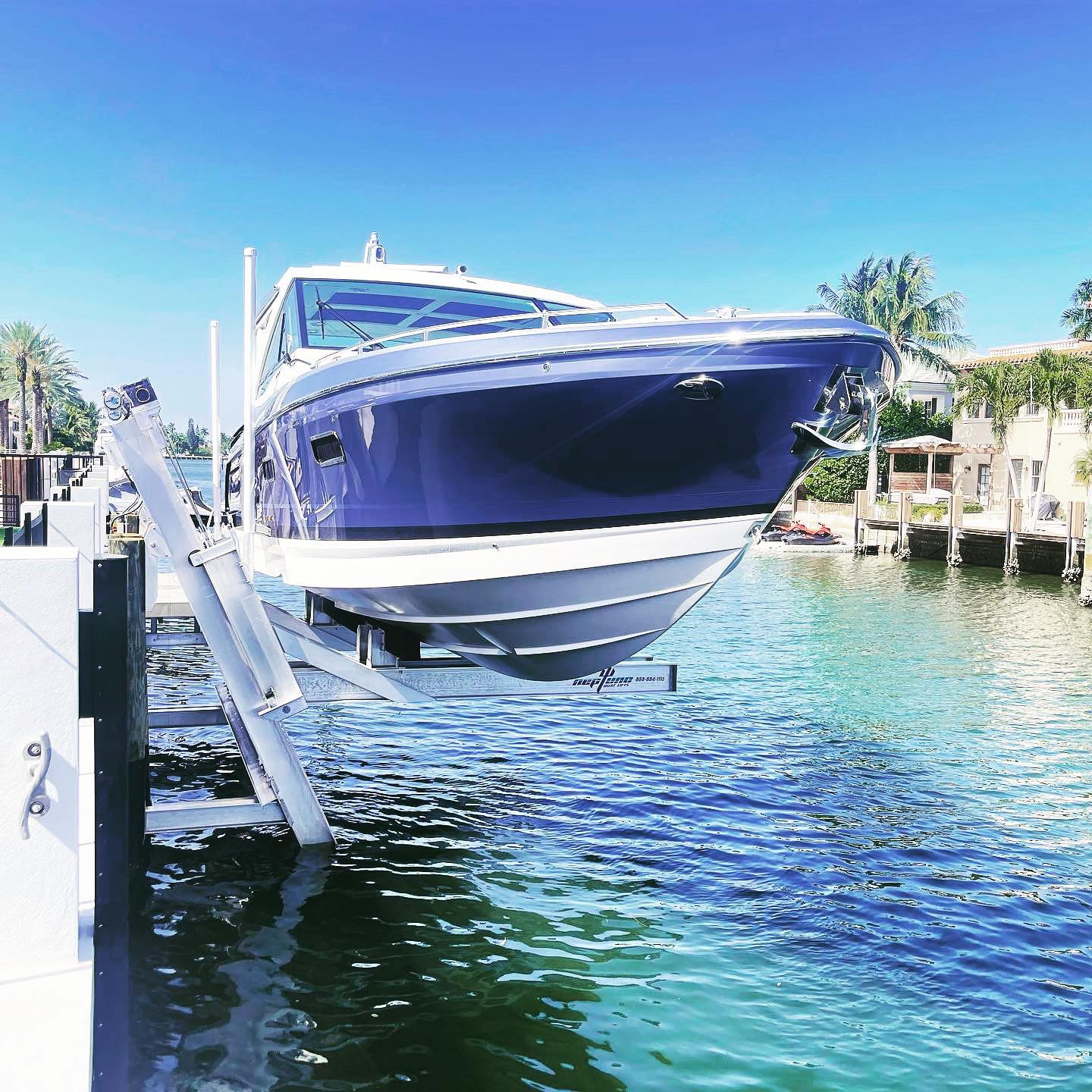

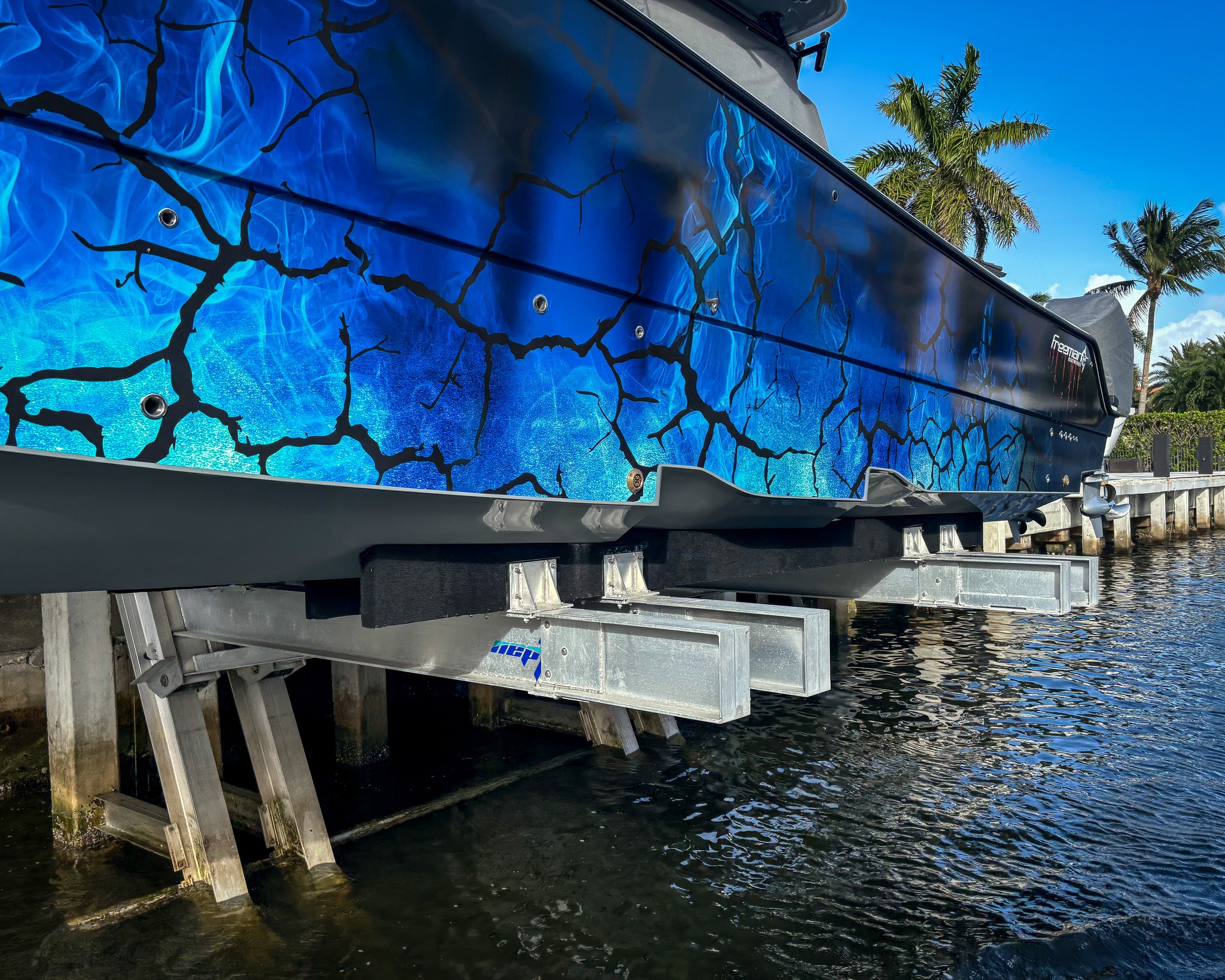

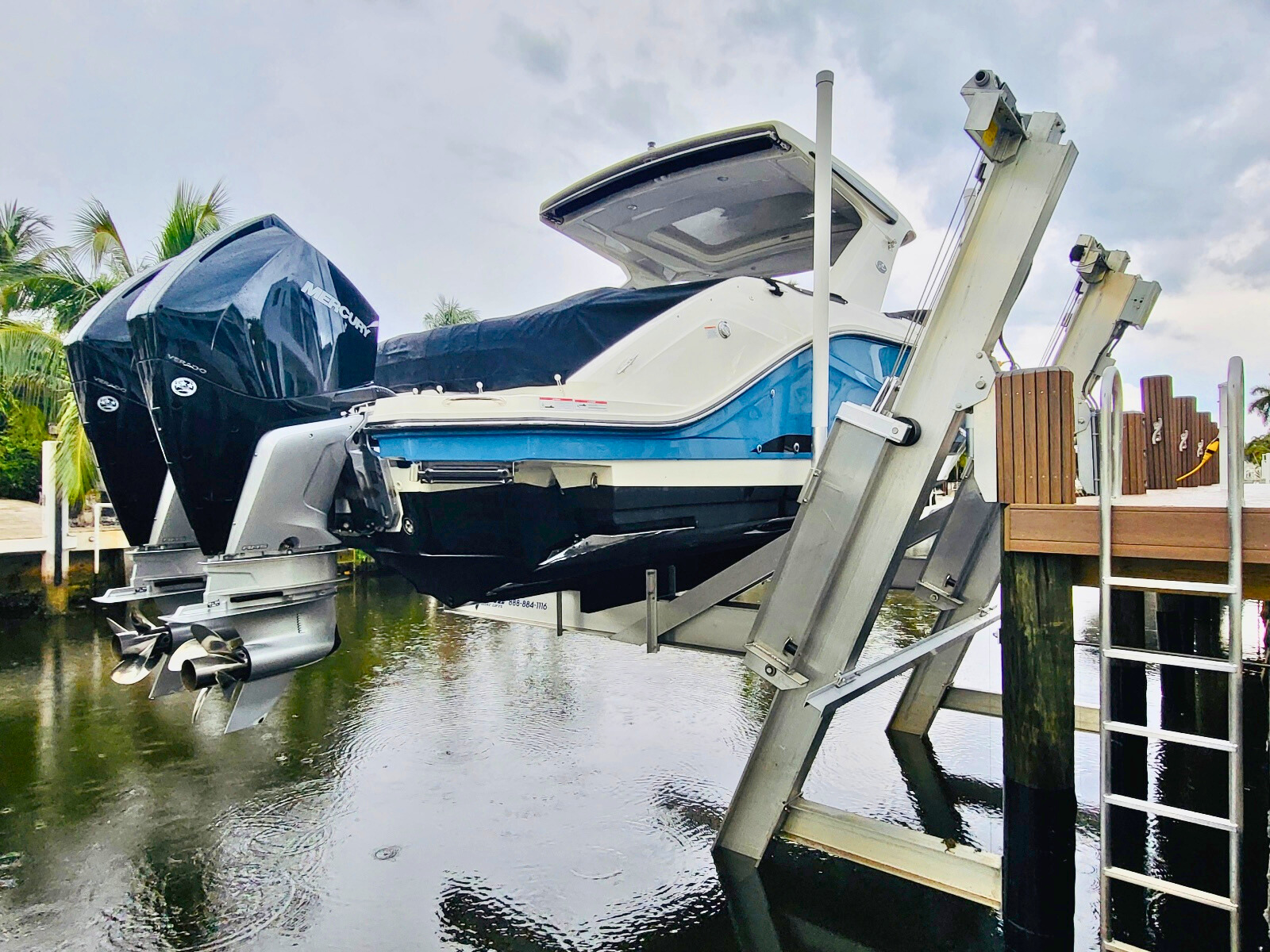

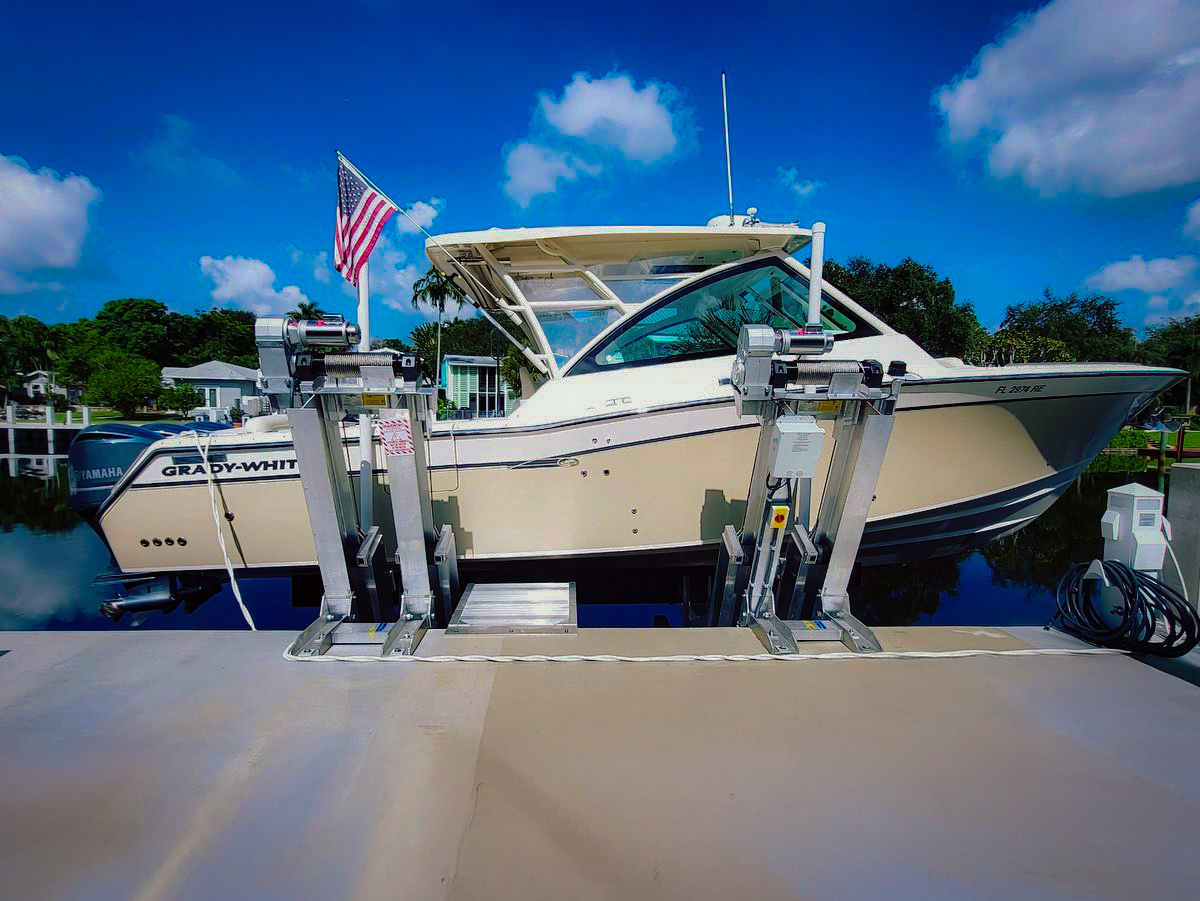

GALLERY

Product Resources

Download technical information and planning resources for Neptune lift systems.

Available downloads include:

Elevator Lifts Boat Lift Specification Sheet  - Direct Drive

Elevator Lifts Boat Lift Specification Sheet  - G3

Elevator Lifts Boat Lift Specification Sheet  - G6

Neptune Lift Planning Guide

Installation Overview Guide

Warranty Information

Learn More:

Every boat sits differently. Hull shape, beam, weight distribution, step hulls, catamarans, pontoons, keeled boats, and outboard configurations can all affect how a boat should be supported.

Neptune offers standard aluminum bunking for many V-hull applications, along with custom bunking when the vessel requires a more specialized setup. By reviewing the boat make, model, beam, weight, and hull design, Neptune can help match the lift and bunk system to the vessel for safer, more consistent lifting.

Neptune elevator lifts can be configured with a variety of options to improve convenience, corrosion resistance, safety, and access. Available options may include wireless remote controls, auto stop and limit switches, complete disconnect switches, stainless steel wash-down motors, self-adjusting cable keepers, custom bunking, catwalks, and SEArmor corrosion-resistant components.

Self-adjusting cable keepers are especially helpful in locations with wave action, because they help maintain cable tension when the lift is lowered. Catwalks and boarding platforms can also make it easier to access, board, clean, and service the boat while it is stored on the lift.

Because an elevator lift mounts to an existing waterfront structure or piling-supported system, the property must be evaluated before the final lift recommendation is made. Seawall condition, piling requirements, water depth, dock layout, vessel weight, track angle, electrical service, and clearance all affect the right design.

Neptune products are sold through licensed marine contractors who permit, sell, install, and service Neptune lifts. This dealer-based process helps ensure that each lift is matched to the site and installed by a qualified professional.

A Neptune elevator lift is a durable piece of marine equipment, but proper maintenance is essential for long service life. Owners should inspect the lift regularly, especially cables, pulleys, sheaves, winders, tracks, and structural components. If a lift has been idle for an extended period, Neptune owner materials recommend inspection and lubrication before use.

Owners should never exceed the rated capacity of the lift, never operate the lift with people in or under the boat, and never leave the lift running unattended. Proper center-of-gravity positioning is also important every time the boat is lifted.

Routine maintenance, rinsing, inspection, anode care, and proper operation help protect the lift and preserve safe performance over time.

Neptune Boat Lifts provides limited warranty coverage for qualifying products and components. Current warranty materials state that the structural integrity of aluminum and stainless steel members is warranted for 10 years, gearboxes for 5 years, motors for 2 years, and other components for 1 year. Warranty coverage applies to the original owner and begins upon delivery.

Routine maintenance and periodic service are the owner’s responsibility. Warranty work must be authorized by Neptune Boat Lifts, LLC and performed by an authorized Neptune technician to maintain factory warranty coverage. Full warranty documentation should be reviewed for complete terms, exclusions, and limitations.

Neptune elevator lifts are commonly used with a wide range of recreational boats.

Typical vessels include:

  • Center Console Boats

  • Offshore Fishing Boats

  • Bay Boats

  • Dual Console Boats

  • Small Sport Boats

Depending on lift configuration, elevator systems typically support vessels ranging from 20 to 40 feet in length.

Depending on your dock configuration, you may also want to explore other Neptune lift systems.

Four Post Lifts

Elevator Yacht Lifts

8-Post Yacht Lifts

Beamless Boat Lifts

Each lift system is engineered for different vessel sizes and waterfront environments.

Elevator Yacht Lifts for Larger Vessels

For larger boats, Neptune also manufactures Elevator Yacht Lifts with capacities up to 72,000 lbs. These systems are designed for more demanding applications where a seawall-mounted or piling-supported elevator configuration is preferred over a traditional yacht lift layout.

Elevator Yacht Lifts are available with heavy-duty compact drive units, stainless steel aircraft cables, adjustable guide poles, piling or seawall mounting, cable retention systems, custom bunking, and available G6 SuperFast drive upgrades. Neptune’s elevator yacht lift materials list common configurations including 27,000 lb., 33,000 lb., 40,000 lb., and 54,000 lb. models, with custom specifications available depending on the project.

Elevator Yacht Lifts

Frequently Asked Questions

An elevator boat lift is a side-mounted lift system designed for seawalls, canals, and other limited-clearance waterfront locations. Instead of lifting a boat between four pilings, the lift uses track-mounted elevator arms to move the boat up and away from the water.

Yes. Elevator boat lifts are often used in narrow canals because they can reduce the need for pilings that extend into the waterway. They are especially useful where space is limited or where a traditional 4-post cradle lift would interfere with boat traffic.

Standard Neptune elevator boat lifts are available in capacities from 3,000 lbs. to 20,000 lbs. Larger Neptune Elevator Yacht Lift configurations are available up to 72,000 lbs., depending on the application and custom specifications.

Yes. Neptune elevator lifts are designed for piling or seawall mount applications. The correct configuration depends on the seawall condition, dock structure, water depth, vessel weight, and site layout.

Yes. Neptune elevator lifts are designed for coastal marine environments using aluminum and stainless steel construction, stainless steel cables, corrosion-resistant components, and optional SEArmor upgrades for added saltwater protection.

Neptune Elevator Boat Lifts may be available with Standard Direct Drive, G3 High Speed Direct Drive, and G6 SuperFast Direct Drive options depending on capacity, power supply, and application requirements. Final drive selection should be confirmed with Neptune or an authorized dealer.

The SEArmor package is a corrosion-resistant upgrade designed to help protect lift components in saltwater environments. It may include corrosion-resistant winders, nylon drive pipe covering, nylon guide poles, and related protective components.

A site evaluation is required. An authorized Neptune dealer or marine contractor should review the seawall condition, dock structure, vessel weight, water depth, clearance, and installation requirements before recommending an elevator lift.

Fit depends on more than boat length. Vessel weight, beam, hull design, center of gravity, engine configuration, fuel load, and dock layout all affect lift selection. A Neptune specialist or authorized dealer can help confirm the correct lift size and bunk configuration.

Yes. Like all marine equipment, elevator lifts require routine inspection and maintenance. Owners should inspect cables, pulleys, sheaves, winders, and structure regularly, rinse components with fresh water, maintain sacrificial anodes, and follow Neptune’s maintenance recommendations.

A Neptune angled aluminum elevator lift uses aluminum I-beam tracks driven into the seabed until refusal. Elevator arms travel along the tracks and are powered by drive units mounted at the top of the system. Proper track alignment, structural support, and installation are critical to long-term performance.

Beam is an important factor in elevator lift selection. Wider vessels move the center of gravity farther from the elevator arms, which affects loading and lift configuration. Neptune or an authorized dealer should review the vessel beam, loaded weight, hull design, and site conditions before recommending a system.

Yes. Elevator lifts are installation-sensitive systems. Proper track placement, plumb alignment, tie-back support, and mounting conditions are essential. Neptune Elevator Boat Lifts should be installed by authorized Neptune dealers or qualified marine contractors familiar with the product.

Electrolysis is an important consideration for elevator lifts because portions of the system remain in the water. Sacrificial anodes, proper installation, maintenance, and electrical disconnect options can all help support long-term protection. Neptune or an authorized dealer can review the appropriate options for the application.

Neptune typically needs the vessel make, model, year, beam, loaded weight, hull design, propulsion, installed equipment, water depth, tidal range, dock or seawall layout, mounting structure, electrical availability, and site photos or drawings when available.

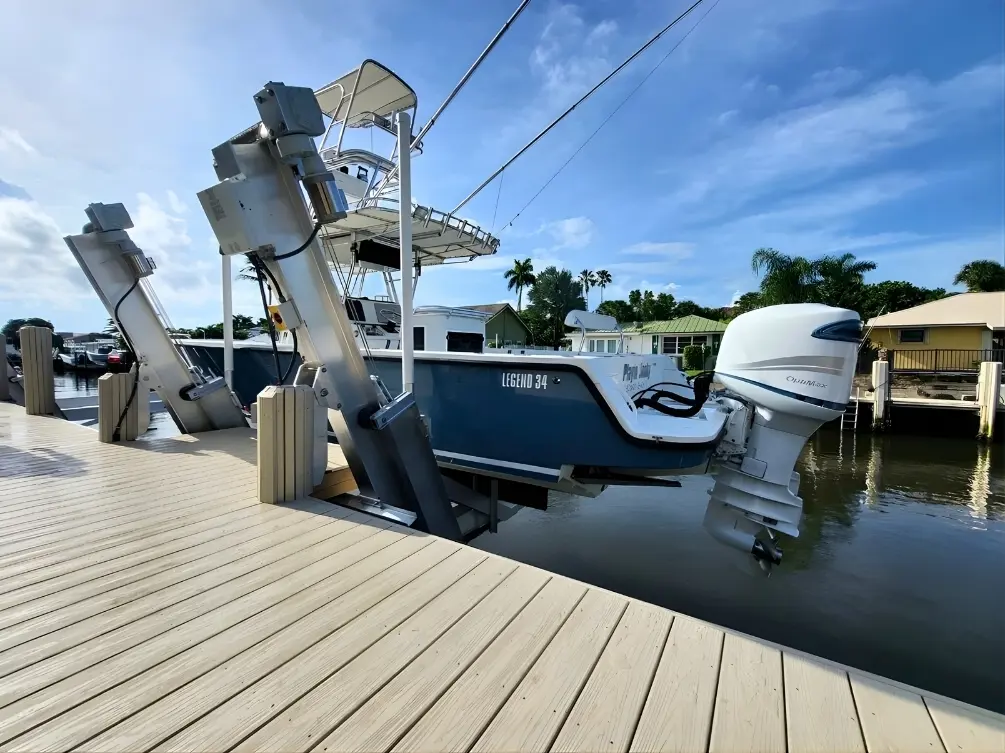

Neptune Elevator Boat Lift_Hero (2).jpg

Is an Elevator Boat Lift Right for Your Property?

An elevator lift may be the right solution if your waterfront property has a seawall, narrow canal, limited slip width, restricted piling access, or a layout that makes a traditional 4-post lift difficult to install. It is also a strong option for owners who want to keep more open waterway space while still storing their boat safely above the water.

The best way to confirm the right lift is to evaluate the boat and the site together. A Neptune dealer can review the vessel’s loaded weight, beam, hull design, center of gravity, water depth, seawall condition, and clearance requirements to recommend the correct elevator lift configuration.
